If you're diving into the world of printed circuit board (PCB) design, understanding how to perform simple circuit board trace calculations is a crucial skill. Whether you're a beginner or an experienced engineer, knowing how to calculate trace width, current capacity, and other parameters ensures your circuit operates safely and efficiently. In this learning exercise, we'll break down the essentials of circuit trace calculations, focusing on traces and their importance in PCB design. Let's explore the fundamentals and walk through practical examples to help you master these concepts.
Why Trace Calculations Matter in PCB Design

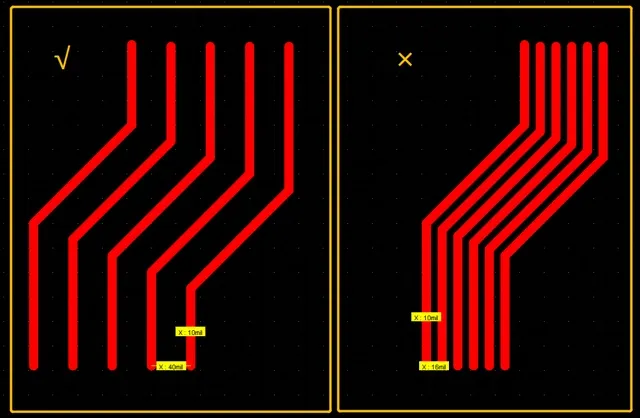

Traces are the conductive paths on a circuit board that connect components and carry electrical signals or power. If traces are not designed properly, they can overheat, cause signal interference, or fail to handle the required current. By performing accurate calculations for traces, you can avoid these issues and create a reliable design. This is especially important for simple circuit boards where small errors can lead to big problems.
In this guide, we'll focus on key aspects of circuit trace calculations, including trace width, current-carrying capacity, and temperature rise. These factors directly impact the performance and safety of your PCB. Let's start with the basics and build up to practical examples.
Understanding the Basics of Circuit Board Traces

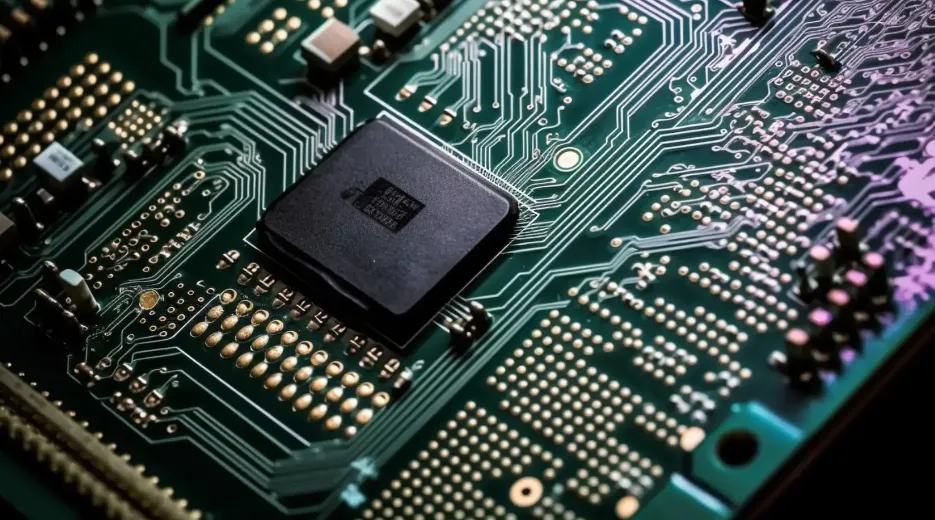

Before diving into calculations, let’s cover what traces are and why they’re important. Traces are thin lines of copper (or other conductive material) on a circuit board that act as wires to connect components like resistors, capacitors, and integrated circuits. The width, thickness, and length of these traces determine how much current they can carry and how they affect signal integrity.
For simple circuit boards, traces are often designed with basic rules in mind. However, even in straightforward designs, you need to consider factors like:
- Current Load: How much current will flow through the trace?
- Temperature Rise: How much heat will the trace generate under load?
- Signal Speed: Will the trace length or width affect high-speed signals?
By focusing on these elements, you can ensure your traces are neither too narrow (causing overheating) nor too wide (wasting valuable board space).
Key Factors in Circuit Trace Calculations
When performing calculations for traces, there are three main parameters to consider: trace width, current capacity, and temperature rise. Let’s break each of these down.
1. Trace Width
Trace width is the measurement of how wide a trace is on the PCB, typically expressed in mils (thousandths of an inch) or millimeters. The width of a trace determines how much current it can carry without overheating. Narrow traces are fine for low-current signals, but high-current paths, like power lines, need wider traces.

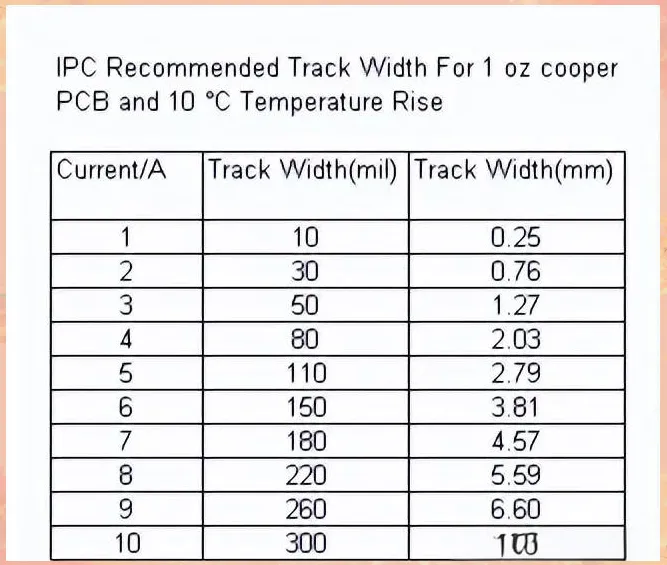

To calculate the appropriate trace width, you can use industry standards like IPC-2221, which provides guidelines based on current and temperature rise. For example, a trace carrying 1 ampere (A) of current might need a width of around 10 mils for a 10°C temperature rise on a standard 1 oz copper board. We'll explore how to calculate this in detail later.
2. Current Capacity
Current capacity refers to the maximum amount of electrical current a trace can handle before it overheats or fails. This depends on the trace width, copper thickness (often measured in ounces per square foot), and the ambient temperature. For instance, a trace made of 1 oz copper can carry less current than a 2 oz copper trace of the same width.
A general rule of thumb for simple circuit boards is that a 10-mil wide trace on 1 oz copper can carry about 1 A of current safely. However, this varies based on design conditions, so calculations are essential for accuracy.
3. Temperature Rise
Temperature rise is the increase in temperature of a trace due to the heat generated by current flow. Excessive heat can damage the PCB or nearby components, so it’s critical to keep this under control. Standards like IPC-2221 suggest limiting temperature rise to 10°C or 20°C for most designs, though this depends on your specific application.
Step-by-Step Guide to Simple Circuit Board Trace Calculations
Now that we’ve covered the basics, let’s walk through a practical learning exercise for circuit trace calculations. We’ll use a hypothetical simple circuit board design and calculate the trace width needed for a specific current load. Follow these steps to perform your own calculations.
Step 1: Determine the Current Load
First, identify the amount of current that will flow through the trace. For this example, let’s assume we’re designing a power trace for a small motor circuit that requires 2 A of current.
Step 2: Choose the Copper Thickness
Next, decide on the copper thickness of your PCB. Most simple circuit boards use 1 oz copper, which means 1 ounce of copper per square foot, equivalent to a thickness of about 1.4 mils (0.035 mm). We’ll use 1 oz copper for this example.
Step 3: Set a Temperature Rise Limit
Decide on an acceptable temperature rise for your design. For most applications, a 10°C rise is a safe choice. This keeps the trace from getting too hot while maintaining reliability.
Step 4: Use a Trace Width Formula or Calculator
To calculate the trace width, you can use a formula derived from industry standards or an online tool. Based on IPC-2221 guidelines, the formula for trace width is often approximated as:
Trace Width (mils) = (Current (A) ^ 0.725) * 41.6 / (Temperature Rise (°C) ^ 0.44)
For our example with 2 A of current and a 10°C temperature rise, the calculation would be:
Trace Width = (2 ^ 0.725) * 41.6 / (10 ^ 0.44)
Trace Width ≈ 1.58 * 41.6 / 2.51 ≈ 26.2 mils
So, a trace width of approximately 26 mils (or 0.66 mm) is needed for a 2 A current with a 10°C temperature rise on 1 oz copper.
Step 5: Verify and Adjust
After calculating the trace width, double-check your design constraints. If 26 mils is too wide for your board layout, consider increasing the copper thickness to 2 oz, which would reduce the required width. Alternatively, if heat dissipation is a concern, you might allow a higher temperature rise (e.g., 20°C) to narrow the trace.
Practical Tips for Accurate Trace Calculations
While the steps above provide a solid foundation, here are some additional tips to ensure your circuit trace calculations are accurate and effective for simple circuit boards.
- Use Online Tools: Many free calculators are available on the web that follow industry standards like IPC-2221. These tools can quickly compute trace width and current capacity based on your inputs.
- Account for Ambient Temperature: If your circuit board will operate in a hot environment (e.g., above 25°C), adjust your temperature rise limit to prevent overheating.
- Consider Signal Integrity: For high-speed signals, trace length and impedance are just as important as width. Aim for controlled impedance by maintaining consistent trace spacing and width.
- Test Your Design: After calculating and designing your traces, simulate or prototype your PCB to verify that it performs as expected under real-world conditions.
Common Mistakes to Avoid in Trace Calculations
Even with careful planning, it’s easy to make errors in trace calculations. Here are some common pitfalls to watch out for:
- Underestimating Current: Always account for peak current, not just average current, to avoid trace failure during high-demand situations.
- Ignoring Copper Thickness: Using the wrong copper weight in your calculations can lead to incorrect trace widths.
- Neglecting Heat Dissipation: If your board lacks proper cooling, even correctly calculated traces can overheat. Add vias or heat sinks if needed.
- Overcomplicating Simple Designs: For basic circuit boards, stick to standard guidelines rather than over-engineering traces with unnecessary precision.
Applying Trace Calculations to Real-World Designs

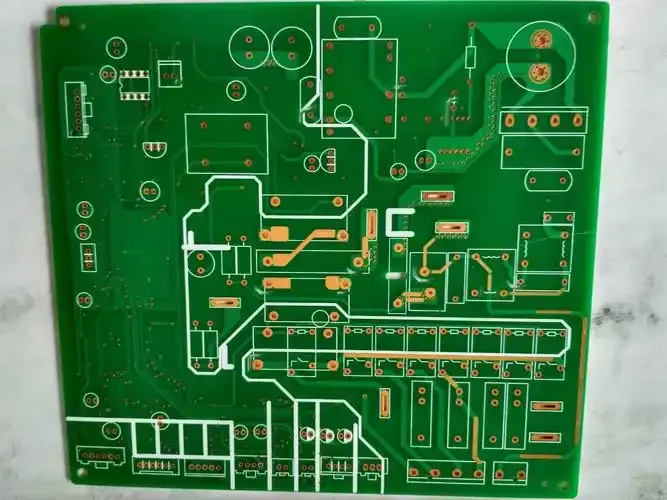

Let’s apply what we’ve learned to a real-world example. Imagine you’re designing a simple circuit board for an LED lighting system. Each LED draws 0.5 A, and you have four LEDs connected in parallel, resulting in a total current of 2 A through the main power trace.
Using the steps outlined earlier, you calculate a trace width of about 26 mils for 1 oz copper and a 10°C temperature rise. However, your board layout is tight, and a 26-mil trace won’t fit. You decide to switch to 2 oz copper, which roughly halves the required width to about 13 mils. This fits your design perfectly while maintaining safety.
Additionally, for the signal traces controlling the LEDs, you use narrower 6-mil traces since they carry negligible current. This balance of power and signal trace widths optimizes your board space and ensures reliability.
Advanced Considerations for Trace Calculations
While this guide focuses on simple circuit board trace calculations, more complex designs may require additional considerations. For instance:
- Impedance Matching: High-frequency circuits need traces with specific impedance (e.g., 50 ohms) to prevent signal reflection. This involves calculating trace width and spacing based on the PCB material’s dielectric constant.
- Trace Length: In high-speed designs, longer traces can introduce delays or crosstalk. Keep critical traces as short as possible.
- Multilayer Boards: If your design uses multiple layers, calculate internal and external traces separately, as internal traces have less heat dissipation.
For now, mastering the basics of trace width and current capacity will serve you well in most simple circuit board projects.
Conclusion: Mastering Simple Circuit Board Trace Calculations
Learning how to perform circuit trace calculations is an essential step in becoming proficient in PCB design. By understanding trace width, current capacity, and temperature rise, you can create simple circuit boards that are safe, efficient, and reliable. Start with the basic steps and tools outlined in this guide, and practice with real-world examples to build your confidence.
Remember, accurate calculations for traces are not just about numbers—they’re about ensuring your design works as intended. With the right approach, you can tackle any PCB project, from the simplest circuits to more advanced layouts. Keep learning, keep designing, and watch your skills grow.
