If you're looking to enhance the reliability of wire bonding in your printed circuit board (PCB) designs, soft gold plating is a top choice. This process ensures strong, conductive connections for applications like gold and aluminum wire bonding, offering durability and performance. In this comprehensive guide, we'll dive into the essentials of soft gold plating for PCB wire bonding, covering the process, thickness standards, optimization techniques, and reliability factors. Whether you're an engineer or a designer, you'll find actionable insights to improve your PCB projects.
What Is Soft Gold Plating for PCB Wire Bonding?

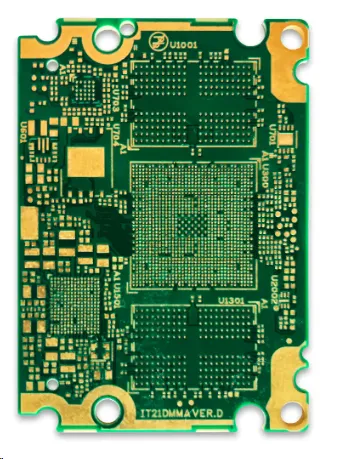

Soft gold plating is a surface finish applied to PCB pads and traces to facilitate wire bonding, a critical process in connecting semiconductor chips to the board. Unlike hard gold, which is more durable for repeated contact, soft gold is specifically designed for bonding applications due to its purity and malleability. This makes it ideal for creating reliable connections with materials like gold or aluminum wires.
Wire bonding is often used in high-precision electronics, such as aerospace, medical devices, and telecommunications equipment. Soft gold plating ensures that the bond between the wire and the PCB pad is strong and conductive, minimizing the risk of failure over time. By understanding its role, you can make informed decisions about surface finishes for your designs.
Why Choose Soft Gold Plating for Wire Bonding?
Soft gold plating stands out for several reasons when it comes to wire bonding reliability. First, its high purity—typically 99.9% gold—ensures excellent conductivity and minimal resistance at the bond interface. Second, its softer nature allows for better deformation during the bonding process, creating a stronger mechanical connection with the wire. This is particularly important for delicate applications where even a small failure can lead to significant issues.
Additionally, soft gold is less prone to forming brittle intermetallic compounds when bonded with aluminum wires, a common concern in mixed-metal bonding. This compatibility improves long-term reliability, especially in environments with temperature fluctuations or mechanical stress.

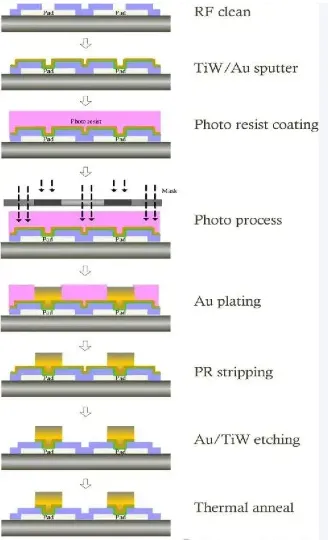

The Soft Gold Plating Process for PCBs
The soft gold plating process for PCBs involves several steps to ensure a uniform and bondable surface. Here's a breakdown of how it's done:
- Cleaning and Preparation: The PCB surface is thoroughly cleaned to remove contaminants like oils or oxides that could interfere with plating adhesion.
- Nickel Underlayer: A thin layer of nickel is often applied as a barrier to prevent diffusion between the copper substrate and the gold layer. This layer is typically 2-5 micrometers thick.
- Electrolytic Gold Plating: Soft gold is deposited using an electrolytic process, ensuring a controlled thickness and uniform coverage. The gold layer is usually kept soft by minimizing additives that could harden it.
- Inspection: The plated surface is inspected for defects like voids or uneven thickness, which could impact wire bonding reliability.
This process is tailored to meet the specific needs of wire bonding, ensuring that the gold layer is both conductive and bondable. Manufacturers often adjust parameters like current density and plating time to achieve the desired results for different applications.
Soft Gold Plating Thickness for Wire Bonding
One of the most critical factors in soft gold plating for wire bonding is the thickness of the gold layer. If the layer is too thin, it may not provide a reliable bonding surface, leading to weak connections. If it's too thick, it can increase costs unnecessarily without adding significant benefits.
For most wire bonding applications, the recommended thickness of soft gold plating ranges from 0.5 to 1.5 micrometers (μm). This range provides a balance between bondability and cost-effectiveness. For gold ball wire bonding, a thickness of around 0.8-1.2 μm is often ideal, as it ensures a strong bond while maintaining good conductivity. For aluminum wedge bonding, a slightly thicker layer of 1.0-1.5 μm may be preferred to account for the different bonding mechanics and potential for intermetallic formation.
It's worth noting that exceeding 2.0 μm is generally unnecessary for most applications and can lead to issues like gold embrittlement over time. Working with your PCB manufacturer to determine the optimal thickness based on your specific wire type and bonding method is key to achieving the best results.
Wire Bonding Reliability with Soft Gold
Reliability is the cornerstone of any wire bonding application, and soft gold plating plays a significant role in ensuring long-term performance. Several factors contribute to wire bonding reliability when using soft gold:
- Surface Purity: Soft gold's high purity reduces the risk of contamination at the bond interface, which can cause failures over time.
- Thermal Stability: Soft gold maintains its integrity under temperature cycling, a common challenge in harsh environments. It can withstand temperatures up to 150°C without significant degradation.
- Mechanical Strength: The malleability of soft gold allows it to absorb stress during bonding, reducing the likelihood of cracks or breaks in the connection.
To maximize reliability, it's essential to pair soft gold plating with proper bonding techniques. For instance, using the correct bonding force—typically in the range of 20-50 grams for gold ball bonding—ensures a secure connection without damaging the pad or wire.
Optimizing Soft Gold Plating for Aluminum Wire Bonding
Aluminum wire bonding presents unique challenges due to the potential for intermetallic compound formation between aluminum and gold, which can weaken the bond over time. However, with the right approach, soft gold plating can be optimized for aluminum wire bonding to ensure reliability.
One key strategy is to control the thickness of the gold layer, as mentioned earlier, keeping it in the 1.0-1.5 μm range. A slightly thicker layer can help mitigate the risk of gold depletion during bonding, where aluminum and gold react to form brittle compounds. Additionally, maintaining a clean bonding environment is critical to prevent contamination that could accelerate intermetallic growth.
Another optimization technique is to use a nickel underlayer with a thickness of 3-5 μm as a diffusion barrier. This reduces the interaction between aluminum and gold, extending the lifespan of the bond. Finally, adjusting the bonding parameters—such as using a lower bonding temperature (around 100-120°C) and optimizing ultrasonic energy—can minimize stress on the bond interface.
Soft Gold Plating Standards for PCB Wire Bonding
Adhering to industry standards is essential for ensuring the quality and reliability of soft gold plating in PCB wire bonding. Several recognized standards provide guidelines for plating thickness, purity, and performance:
- IPC-4556: This standard covers the requirements for electroless nickel/immersion gold (ENIG) and electrolytic gold finishes, including soft gold for wire bonding. It specifies a minimum gold purity of 99.9% and recommends thickness ranges for different applications.
- MIL-G-45204: A military specification often referenced for gold plating, this standard outlines requirements for soft gold used in critical applications, including a hardness limit of 90 Knoop to ensure bondability.
- JEDEC Standards: These standards provide guidelines for semiconductor packaging and wire bonding, emphasizing the importance of surface finish compatibility with bonding materials.
Following these standards helps ensure that your soft gold plating meets the necessary criteria for reliable wire bonding. Always verify with your PCB manufacturer that their processes align with these specifications, especially for high-stakes projects in industries like aerospace or medical technology.
Common Challenges and Solutions in Soft Gold Plating for Wire Bonding
While soft gold plating offers many benefits, there are challenges that can arise during the process or application. Here are some common issues and how to address them:
- Uneven Thickness: Variations in gold layer thickness can lead to inconsistent bonding. Solution: Use precise electrolytic plating techniques and conduct thorough post-plating inspections with tools like X-ray fluorescence (XRF) to measure thickness.
- Contamination: Surface contaminants can weaken bonds. Solution: Implement strict cleaning protocols before plating and bonding, using solvents or plasma cleaning methods.
- Cost Concerns: Soft gold plating can be expensive due to the material's price. Solution: Optimize thickness to the minimum required for reliable bonding (e.g., 0.8-1.2 μm for gold wires) to reduce costs without sacrificing performance.
By proactively addressing these challenges, you can ensure that your soft gold plating delivers the reliability needed for your wire bonding applications.
Best Practices for Maximizing Reliability with Soft Gold Plating
To get the most out of soft gold plating for PCB wire bonding, consider these best practices:
- Collaborate with Your Manufacturer: Work closely with your PCB supplier to define plating specifications, including thickness and nickel underlayer requirements, tailored to your specific bonding needs.
- Test Under Real Conditions: Perform reliability testing, such as thermal cycling (e.g., -40°C to 125°C for 1000 cycles) and mechanical stress tests, to validate bond strength in your intended environment.
- Monitor Bonding Parameters: Fine-tune bonding force, temperature, and ultrasonic energy to match the properties of soft gold and the wire material, ensuring consistent results.
- Store Properly: Protect plated PCBs from contamination by storing them in a clean, dry environment with anti-tarnish packaging until ready for bonding.
Following these practices can significantly enhance the performance and longevity of your wire bonds, reducing the risk of failures in the field.
Conclusion: Achieving Reliable Wire Bonding with Soft Gold Plating
Soft gold plating is a proven solution for achieving reliable wire bonding in PCB designs, offering excellent conductivity, bondability, and compatibility with both gold and aluminum wires. By understanding the soft gold plating process, optimizing thickness (typically 0.5-1.5 μm), and adhering to industry standards like IPC-4556, you can ensure strong and durable connections for your electronic applications.
Whether you're working on a high-frequency telecommunications device or a critical medical sensor, the insights in this guide can help you make informed decisions about soft gold plating for wire bonding. Focus on precision, collaborate with experienced manufacturers, and apply best practices to maximize reliability in every project.
With the right approach, soft gold plating can be the key to unlocking superior performance and durability in your PCB designs. Start implementing these strategies today to elevate the quality of your wire bonding processes.
