If you're looking for information on high-temperature solder mask materials for automotive and aerospace applications, you're in the right place. Solder masks are critical protective layers on printed circuit boards (PCBs) that must withstand extreme heat, thermal cycling, and harsh environments in these industries. In this blog, we'll dive deep into the types of thermal resistant solder mask materials, their specific requirements for automotive PCBs, and aerospace solder mask standards, helping you choose the right solution for your high-temperature needs.
Whether you're designing PCBs for a car's engine control unit or an aircraft's navigation system, understanding the properties of solder masks under high heat is essential. Let's explore the world of solder mask materials tailored for these demanding applications.

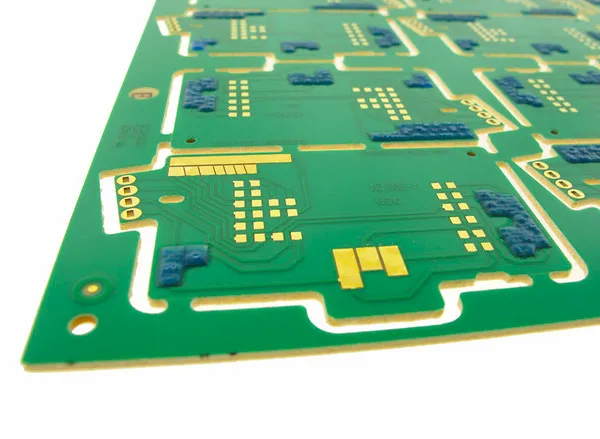

What Is a Solder Mask and Why Does It Matter for High-Temperature Applications?
A solder mask is a thin protective layer applied to the copper traces of a PCB. It prevents accidental solder bridges during assembly, insulates the traces from environmental factors, and protects against oxidation. In high-temperature applications like automotive and aerospace, the solder mask must endure extreme heat, rapid temperature changes, and other stressors without cracking, peeling, or losing its protective properties.
In automotive and aerospace environments, PCBs often operate in conditions where temperatures can exceed 150°C, sometimes reaching up to 200°C or more. A standard solder mask might fail under such heat, leading to electrical shorts, corrosion, or complete board failure. This is why selecting a thermal resistant solder mask is crucial for reliability and safety in these industries.
Key Requirements for High-Temperature Solder Masks in Automotive PCBs

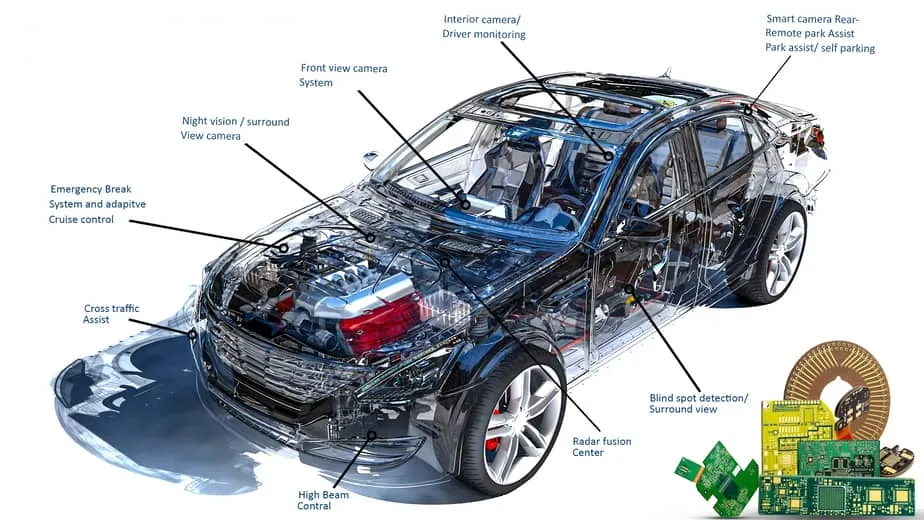

Automotive PCBs are used in engine control units, transmission systems, battery management systems, and more. These components face intense heat, vibration, and humidity, making the choice of solder mask material vital. Here are the key requirements for a solder mask in automotive applications:
- Thermal Resistance: Automotive PCBs often operate in environments with temperatures ranging from -40°C to 160°C. The solder mask must maintain its integrity across this wide range without degrading or losing adhesion.
- Thermal Cycling Durability: Vehicles experience frequent temperature fluctuations. A high-quality solder mask must withstand thermal cycling tests, such as 1000 hours of exposure between -40°C and 160°C, without cracking or delaminating.
- Chemical Resistance: Exposure to automotive fluids like oil, coolant, and fuel is common. The solder mask must resist chemical corrosion to protect the underlying copper traces.
- Electromigration Resistance: In high-humidity conditions, electromigration (the movement of metal ions under an electric field) can cause shorts. A robust solder mask prevents this issue, ensuring long-term reliability.
Materials used in automotive solder masks are often tested under strict standards to ensure they meet these demands. For instance, many undergo thermal cycle tests (TCT) and high-temperature storage tests to simulate real-world conditions.
Aerospace Solder Mask Requirements: Meeting Extreme Standards
Aerospace applications take the demands on solder masks to another level. PCBs in aircraft and spacecraft must function in environments with extreme temperatures, radiation, and vacuum conditions. Here are the critical aerospace solder mask requirements:
- High-Temperature Performance: Aerospace PCBs can face temperatures exceeding 200°C in engine systems or during re-entry phases for spacecraft. The solder mask must resist thermal degradation at these levels.
- Thermal Shock Resistance: Rapid temperature changes, such as those experienced during high-altitude flights or space missions, require a solder mask that can handle thermal shock without cracking. Tests often simulate shifts from -55°C to 200°C in seconds.
- Low Outgassing: In space applications, materials must have low outgassing properties to prevent contamination of sensitive equipment in a vacuum. Solder masks for aerospace must meet strict outgassing standards like those set by NASA.
- Radiation Resistance: Cosmic radiation can degrade materials over time. Aerospace solder masks need to maintain their protective properties even after prolonged exposure to radiation.
The reliability of aerospace systems depends heavily on the performance of every component, including the solder mask. Failure of a PCB in a critical system like navigation or communication could have catastrophic consequences, so rigorous testing and material selection are non-negotiable.
Types of High-Temperature Solder Mask Materials
Not all solder masks are created equal. For high-temperature applications in automotive and aerospace, specific materials are engineered to meet the challenges of heat and harsh environments. Below are the most common types of thermal resistant solder mask materials:
1. Epoxy-Based Liquid Photoimageable (LPI) Solder Masks
Epoxy-based LPI solder masks are widely used due to their excellent thermal and chemical resistance. They are applied as a liquid and cured using UV light, forming a durable layer. These masks can typically withstand temperatures up to 150°C continuously and are suitable for many automotive applications. Their flexibility also helps them endure thermal cycling without cracking.
2. High-Temperature LPI Solder Masks
Advanced LPI formulations are designed for even higher temperatures, often up to 180°C or 200°C. These are modified with additives to enhance thermal stability and are commonly used in both automotive and aerospace PCBs where standard epoxy masks fall short. They also offer good adhesion to various substrates, ensuring long-term protection.
3. Dry Film Solder Masks
Dry film solder masks are applied as a solid sheet and laminated onto the PCB. While they are less common for extreme high-temperature applications, certain high-performance dry films can handle temperatures up to 160°C. They are often chosen for their uniform thickness and ease of application in specific manufacturing processes.
4. Specialty Polymer Masks
For the most demanding aerospace applications, specialty polymer-based solder masks are used. These materials can endure temperatures above 200°C and offer exceptional resistance to thermal shock, radiation, and outgassing. They are custom-engineered for specific missions, such as deep-space exploration, where standard materials would fail.
Choosing the right solder mask material depends on the specific temperature range, environmental factors, and performance requirements of your PCB. Working with a trusted PCB manufacturer ensures that the material matches the application’s needs.
Testing and Standards for Thermal Resistant Solder Masks
To ensure reliability in high-temperature environments, solder masks for automotive and aerospace applications undergo rigorous testing. Here are some common tests and standards:
- Thermal Cycle Test (TCT): Simulates temperature fluctuations, often between -40°C and 160°C for automotive PCBs, or -55°C to 200°C for aerospace, over hundreds or thousands of cycles. This ensures the solder mask can handle real-world conditions without cracking.
- High-Temperature Storage Test: Exposes the PCB to continuous high heat (e.g., 150°C for 1000 hours) to evaluate long-term thermal stability.
- Thermal Shock Test: Subjects the PCB to rapid temperature changes to assess the solder mask’s ability to resist cracking or delamination under sudden stress.
- IPC Standards: The Institute of Printed Circuits (IPC) sets guidelines like IPC-SM-840, which defines performance requirements for solder masks, including thermal resistance and adhesion.
Compliance with these tests and standards is critical for ensuring that the solder mask performs reliably in the field. Automotive and aerospace manufacturers often require documentation of test results before approving a material for use.
Challenges in Selecting High-Temperature Solder Masks
While thermal resistant solder masks are essential, selecting the right one comes with challenges. Here are a few common hurdles and how to address them:
- Balancing Cost and Performance: High-performance solder masks, especially for aerospace, can be expensive. It’s important to weigh the cost against the specific requirements of the application to avoid over-specifying.
- Compatibility with PCB Materials: Not all solder masks adhere well to every substrate. For instance, ceramic PCBs, often used in high-temperature applications, may require specific mask formulations for proper bonding.
- Manufacturing Constraints: Some high-temperature solder masks require specialized application or curing processes, which may not be compatible with all production lines. Planning ahead with your PCB supplier can mitigate delays.
Understanding these challenges helps in making informed decisions when designing PCBs for automotive or aerospace use. Collaboration with experienced manufacturers can streamline the process and ensure the best material match.
How to Choose the Right Solder Mask for Your Application
Selecting a high-temperature solder mask involves several key considerations. Follow these steps to make the right choice:
- Define Temperature Requirements: Determine the maximum operating temperature and thermal cycling range your PCB will face. This narrows down material options.
- Assess Environmental Factors: Consider exposure to chemicals, humidity, radiation, or vacuum conditions, especially for aerospace applications.
- Review Test Data: Request thermal resistance and durability test results from the material supplier to confirm performance under your specific conditions.
- Consult with Experts: Work closely with your PCB manufacturer to match the solder mask to your design and manufacturing process.
By taking a systematic approach, you can ensure that the solder mask you choose meets the demands of your automotive or aerospace project, providing long-term reliability.
Conclusion: Ensuring Reliability with High-Temperature Solder Masks
Solder masks play a vital role in protecting PCBs, especially in the extreme conditions of automotive and aerospace applications. Whether you need a solder mask for automotive PCBs operating near engines or an aerospace solder mask for high-altitude systems, choosing a thermal resistant material is essential for performance and safety.
From epoxy-based LPI masks for moderate high-temperature needs to specialty polymers for extreme aerospace environments, the right material can make all the difference. By understanding the specific requirements, testing standards, and challenges of high-temperature applications, you can design PCBs that stand up to the toughest conditions.
At ALLPCB, we’re committed to helping you navigate these complex decisions. Our expertise in PCB manufacturing ensures that your designs are paired with the best high-temperature solder mask materials for automotive and aerospace applications. Trust us to deliver reliable solutions tailored to your needs.
