Wearable health monitors are revolutionizing how we track vital signs, from heart rate to blood oxygen levels. At the core of these devices lies flexible PCB design for wearables, which allows them to bend and conform to the body for comfort and functionality. However, designing these circuits comes with unique challenges like ensuring a proper conformal fit, maintaining reliability under constant bending, and choosing the right materials. In this blog, we’ll explore the key design challenges of flexible PCBs for health monitors and provide practical solutions to overcome them, focusing on bending radius, materials, and reliability.
Why Flexible PCBs Are Essential for Wearable Health Monitors
Wearable health monitors, such as fitness trackers and medical patches, need to be lightweight, comfortable, and durable. Traditional rigid PCBs cannot meet these demands as they lack the ability to bend or adapt to the body’s contours. This is where flexible PCBs and rigid-flex PCB health monitors come into play. These boards can curve around a wrist or adhere to skin, ensuring a snug fit while maintaining functionality.
Flexible PCBs also enable smaller, more compact designs. For instance, a typical wearable health monitor might need to fit multiple sensors, a battery, and a microcontroller into a space no larger than 2 cm x 3 cm. With a flexible PCB, designers can fold or layer components to save space, something impossible with rigid boards. However, achieving this level of design precision introduces several challenges, which we’ll dive into next.
Key Design Challenges in Flexible PCB Design for Wearables
Creating a flexible PCB for wearables isn’t as simple as swapping out a rigid board for a bendable one. Designers must address several hurdles to ensure the device performs reliably over time while maintaining user comfort. Let’s break down the major challenges.
1. Achieving Conformal Fit for Comfort and Functionality

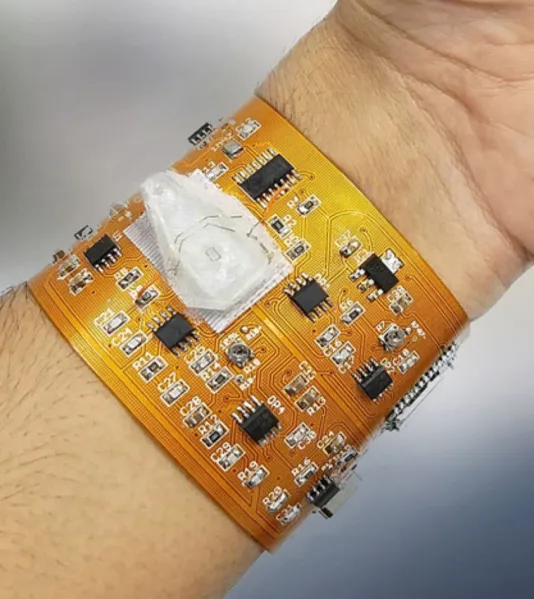

A conformal fit means the wearable device molds to the body’s shape without causing discomfort or losing contact with the skin. For health monitors, this is critical—sensors must stay in place to accurately measure data like heart rate or temperature. However, designing a flexible PCB to maintain this fit is tricky. The board must bend without stressing components or breaking traces, and it needs to withstand repeated movement, like wrist flexing.
For example, if a PCB is too stiff, it might create pressure points on the skin, leading to irritation. If it’s too flexible, it risks losing structural integrity, causing sensors to misalign. Striking the right balance is a significant challenge in flexible PCB design for wearables.
2. Managing Bending Radius in Flexible PCBs
The bending radius of a flexible PCB refers to the tightest curve it can handle without damaging traces or components. For wearable health monitors, the bending radius must be small enough to wrap around a wrist or curve over a shoulder, often as tight as 5 mm or less. However, a smaller bending radius increases stress on the copper traces, which can crack or delaminate over time.
According to industry standards, a typical flexible PCB can endure a bending radius of 10 times its thickness for dynamic flexing (repeated bending). For a 0.1 mm thick board, this means a minimum radius of 1 mm. But in wearables, where constant movement is expected, designers must often push beyond these limits, risking reliability issues.
3. Ensuring Wearable PCB Reliability Under Stress
Wearable PCB reliability is a top concern since these devices are exposed to daily wear and tear. Unlike static electronics, health monitors face constant bending, stretching, and exposure to sweat or humidity. Over time, this can lead to trace fractures, solder joint failures, or material degradation. For instance, a study on wearable electronics found that up to 30% of failures in flexible PCBs are due to mechanical stress after 10,000 bending cycles.
Reliability also ties into signal integrity. A health monitor might transmit data at speeds up to 1 Mbps for real-time tracking. If traces crack or components shift, signal loss or interference can occur, leading to inaccurate readings—a critical issue for medical devices.

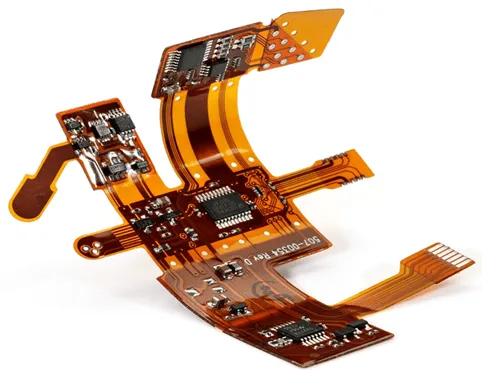

4. Selecting the Right Flex PCB Materials
The choice of materials in flex PCB design directly impacts performance and durability. Common substrates like polyimide (PI) are popular for their flexibility and heat resistance, but they can be expensive. Cheaper alternatives like polyester (PET) may not withstand high temperatures or repeated bending, limiting their use in demanding health monitors.
Additionally, the adhesive layers and copper foil must be compatible with the substrate to prevent delamination. For instance, a mismatch in thermal expansion coefficients between layers can cause warping when the device heats up during operation, often reaching temperatures of 40-50°C near the skin.
Solutions for Overcoming Flexible PCB Design Challenges
While the challenges of designing flexible PCBs for wearable health monitors are significant, there are proven solutions to address them. By focusing on innovative design techniques and material choices, engineers can create reliable, comfortable, and functional devices. Let’s explore these solutions in detail.
1. Optimizing Design for Conformal Fit
To achieve a proper conformal fit, designers can use 3D modeling software to simulate how the PCB will bend around the body. This allows for precise placement of components and traces to avoid high-stress areas. For example, placing rigid components like ICs in areas with minimal bending ensures they aren’t damaged during use.
Another approach is to integrate rigid-flex PCB health monitors, combining flexible sections for bending with rigid areas for mounting components. This hybrid design offers stability where needed while allowing the board to conform to the body’s shape. A typical rigid-flex board might have a flexible section with a bending radius of 3 mm, while the rigid section supports heavier components like batteries.
2. Minimizing Stress with Proper Bending Radius Design
To manage the bending radius of flexible PCBs, designers should follow guidelines for minimum bend limits based on board thickness and material. For dynamic flexing in wearables, a bending radius of at least 10-15 times the board thickness is recommended. For a 0.2 mm thick PCB, this translates to a minimum radius of 2-3 mm.
Additionally, using wider traces and avoiding sharp angles in the layout can reduce stress concentration. For instance, traces with a width of 0.2 mm or more are less likely to crack under bending compared to narrower 0.1 mm traces. Reinforcing high-stress areas with coverlay or additional layers also helps maintain integrity during repeated flexing.
3. Enhancing Wearable PCB Reliability
Improving wearable PCB reliability starts with rigorous testing. Simulating real-world conditions, such as 20,000 bending cycles or exposure to 85% humidity, can identify weak points before production. Designers can then reinforce these areas with thicker copper (e.g., 1 oz instead of 0.5 oz) or protective coatings to prevent corrosion from sweat.
Another solution is to use strain-relief techniques, such as adding flexible stiffeners or spacing components away from bend zones. This reduces mechanical stress on solder joints, which are prone to cracking under dynamic loads. For signal integrity, maintaining a controlled impedance—often around 50 ohms for high-speed signals—ensures data accuracy even under stress.
4. Choosing Durable Flex PCB Materials
Selecting the right flex PCB materials is critical for long-term performance. Polyimide is often the go-to choice for substrates due to its flexibility, thermal stability (up to 260°C), and resistance to chemicals like sweat. For cost-sensitive projects, a hybrid of polyimide and polyester can balance performance and price.
Copper foil should be rolled annealed (RA) rather than electrodeposited (ED) because RA copper is more ductile and less prone to cracking during bending. A thickness of 12-18 microns is ideal for most wearable applications, providing a good mix of flexibility and conductivity. Finally, using high-quality adhesives with matching thermal properties prevents delamination, even after prolonged exposure to body heat.
Future Trends in Flexible PCB Design for Wearables
The field of flexible PCB design for wearables is evolving rapidly, driven by advances in materials and manufacturing. One exciting trend is the development of stretchable PCBs, which not only bend but also stretch to match skin movement. These boards use innovative substrates like silicone, opening new possibilities for skin-adherent health monitors.
Another trend is the integration of advanced sensors directly onto flexible PCBs, reducing size and improving data accuracy. For example, embedding temperature sensors with a sensitivity of ±0.1°C directly into the board eliminates the need for separate components, streamlining design.
Lastly, sustainability is becoming a focus. Researchers are exploring biodegradable flex PCB materials to reduce electronic waste from disposable health monitors. While still in early stages, these materials could transform the industry in the coming years.
Conclusion: Building Better Wearables with Flexible PCBs
Flexible PCBs are the backbone of wearable health monitors, enabling devices that are comfortable, compact, and reliable. However, challenges like achieving a conformal fit, managing bending radius, ensuring wearable PCB reliability, and selecting the right flex PCB materials require careful consideration. By adopting solutions like optimized designs, rigorous testing, and high-quality materials, engineers can overcome these hurdles and create cutting-edge wearables that meet user needs.
